Your Trusted Source for Quality Clean Roof Panels
Attributes and Versatility in Clean Roof Panels
Facing
thickness
Thickness Available:
30mm 40mm 50mm 60mm 80mm100mm120mm
Exploring Clean Roof Panel Construction: Insights into Manufacturing Methods
Fast To Construct
The manufacturer of clean roof panels constructs the sheets in the factory, facilitating swift installation at the site. These insulated clean panels are also straightforward to install, thereby reducing installation time.
Insulation – Heat Proof
Crafted from premium Rigid Polyurethane Foam (PUF), this product stands out as one of the most efficient and top-performing insulation solutions available. The clean roof panel manufacturing process sets a benchmark for quality and performance, resulting in substantial savings on cooling and heating expenses.
Strong Load Bearing
Clean Roof Panels are designed to endure compressive loads of up to 1 ton per square foot. When extended, they exhibit the capability to support substantial weights, comprising both live and dead loads. Additionally, minimal support structure is necessary for manufacturing clean roof panels, owing to their inherent strength.
Edge Protect Technology
Weather Shield For Ultra Long Life
Clean roof panels are equipped with The Weather Shield coating, an extra-thick layer of paint providing added protection against the elements. The UV-resistant properties of the Weather Shield coat ensure durability, even when exposed to sunlight, making these clean roof panels highly UV-resistant.
Technical Specifications of Clean Roof Panels
| Panel thickness available | 30mm, 40mm, 50mm, 60mm, 80mm, 100mm, 120mm |
| Panel total width | 1070mm |
| Panel effective width | 1000mm |
| Panel length available | 1000mm-15000mm |
| Density | 40± 2kg/m3 |
| Thermal conductivity | 0.024-0.03 W/m |
| Temperature range | -40+800C |
| CFC / HFC | Free from CFC / HFC |
| Type of foam | B1, B2, B3, PIR |
| Heat transfer co-efficient | -0.022W/M2*k |
| Pressure | 0.10Mpa |
| Top coat | 5 + 15 micron |
| Back coat | 5 + 5 micron |
| 500h (ECCA TB) | 100 h (ASTM D 2247) |
CLASSIFICATION BASED ON THICKNESS OF PANEL
50mm puf panel
50mm panels are the most ideal thickness of puf sheet. They offer the best mix of insulation, strength and cost. These are a good choice for all constructions like roof top room, hospital floor, school classrooms, roof top restaurant construction, penthouse etc.
30mm puf panel
30mm panels are the most economical type of panel. They are a good choice as an alternative for metal roofing sheets.
65mm puf panel
65mm panels are a good choice for applications where high levels of insulation are required and where extreme cold or heat is a concern, such as refrigerated warehouses and cold storage facilities
40mm puf panels
40mm panels are thicker than 30mm panels and offer more insulation and strength. They are a good choice for applications where budget is is important factor, such as servant classrooms, staff quarters, temporary offices etc.
105mm puf panel
105mm panels are the thickest type of panel available. They offer the highest levels of insulation and are a good choice for applications where extreme cold or heat is a major concern, such as sub-zero refrigerator, cryogenic chambers and blast freezers.
All things you need to know
Thorough Guide to Clean Roof Panel Fabrication: Options, Prices, Attributes, and Beyond

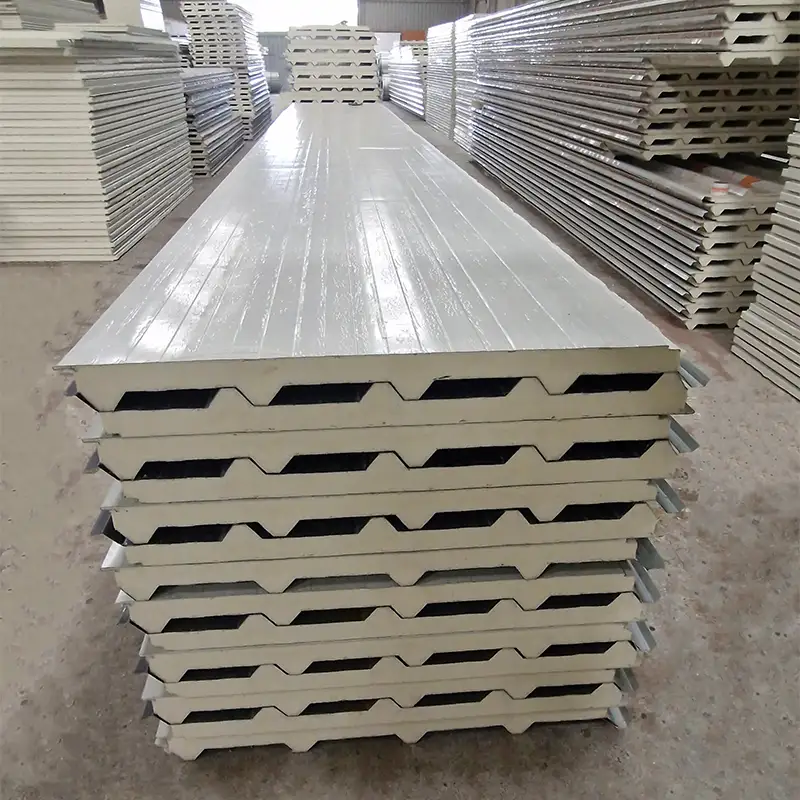

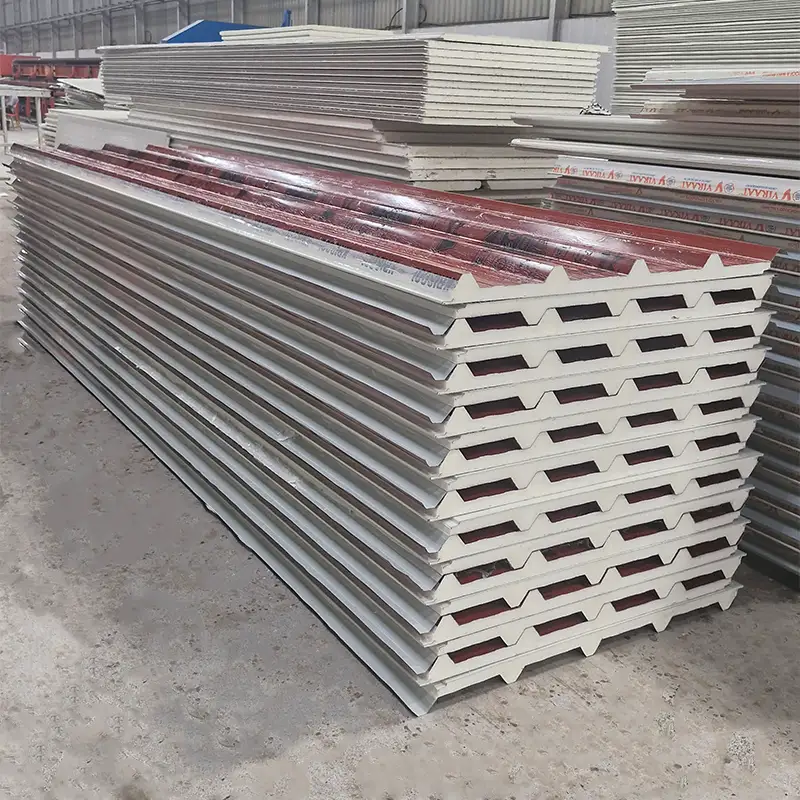

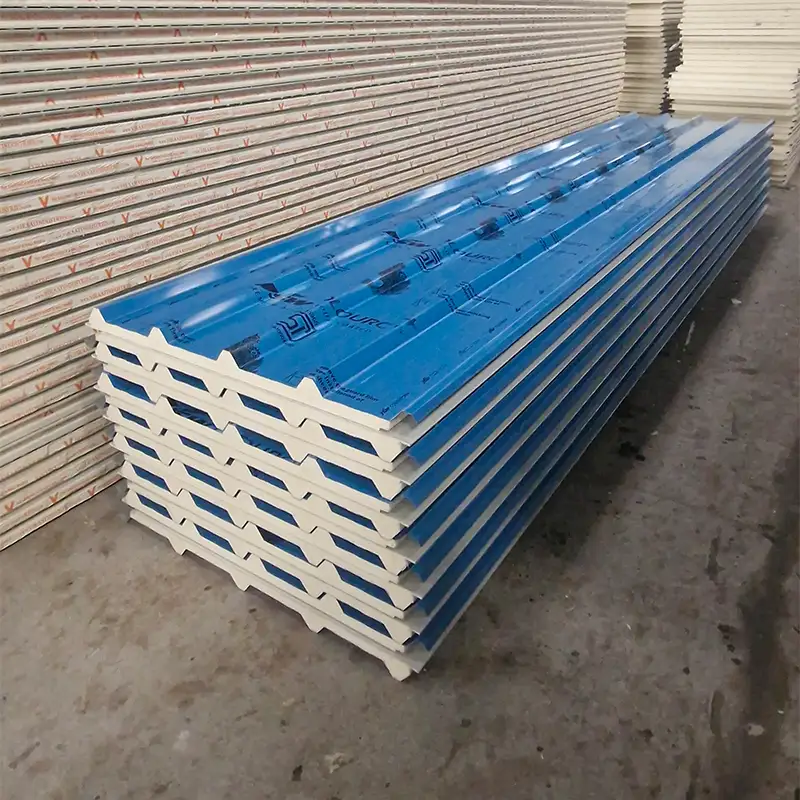

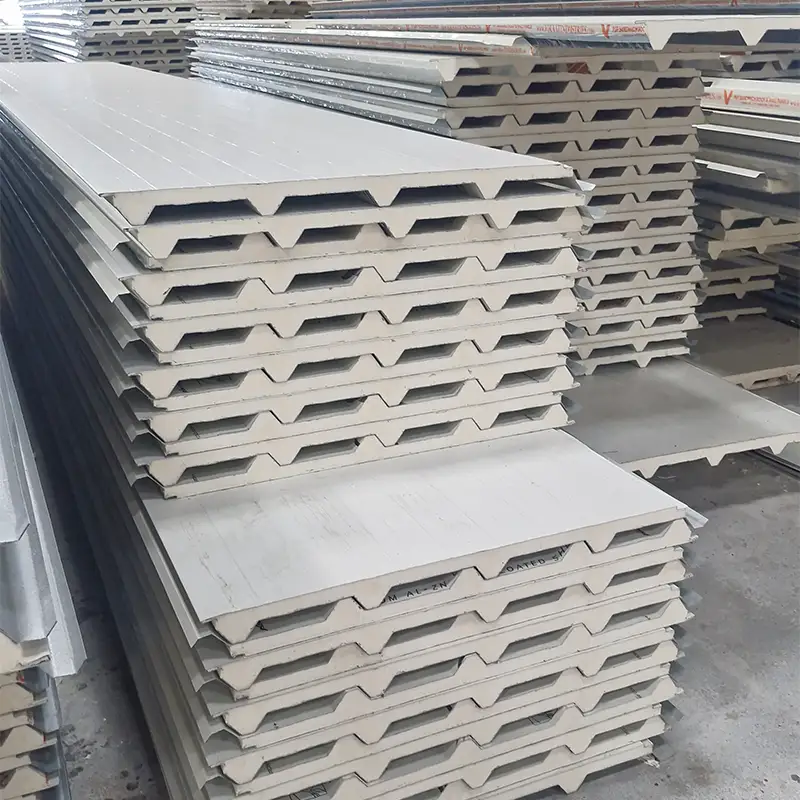

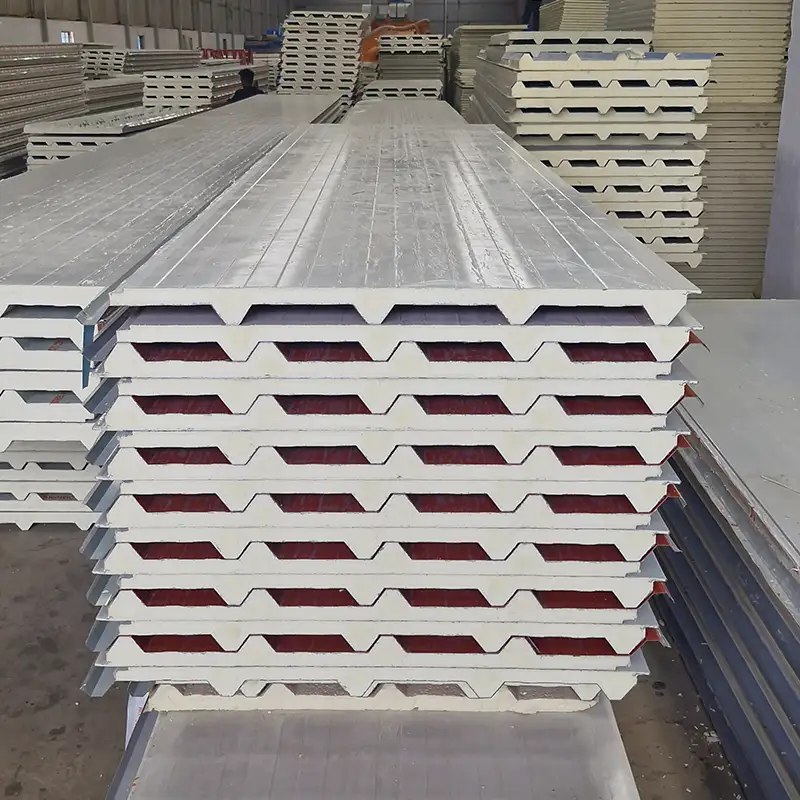

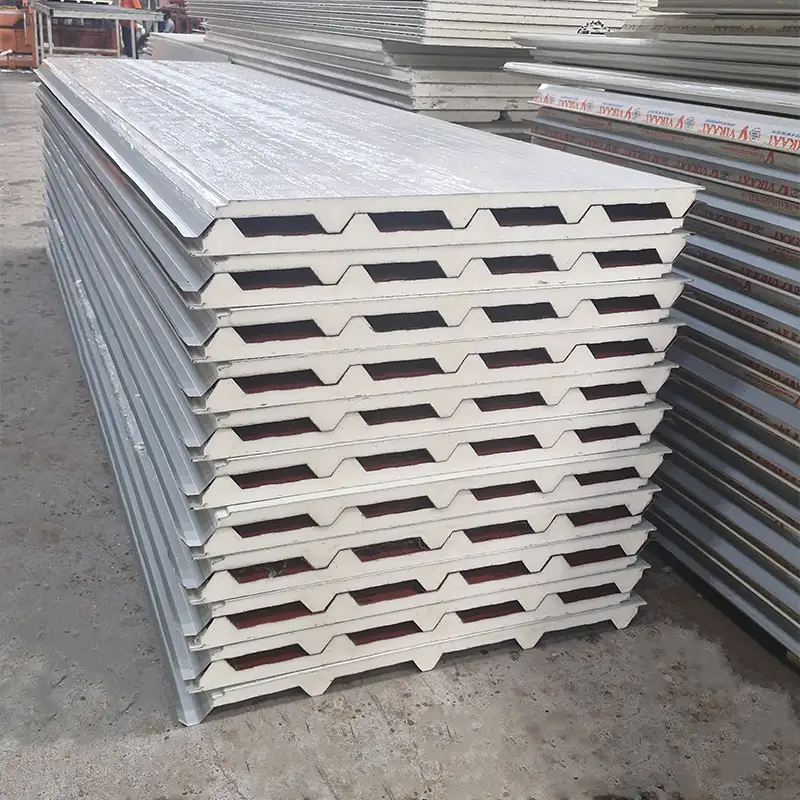

Puf Roof Panels
Clean roof panels are designed to endure challenging environments. With a wide selection of finishes and colors, they seamlessly complement any office or home design. Whether for warehouses, PEB industries, small spaces, or farmhouses, these panels combine elegance with exceptional resilience.
The panel is manufactured using a Continuous Line Production Method and features five corrugations with a 250mm pitch, along with exterior baby ribs for extra strength.
Weather Endurance
Withstand harsh climates effortlessly.
Energy Efficiency
Maintain optimal temperatures, saving on energy bills.
Versatile Application
Ideal for diverse spaces, from warehouses to residential homes.
Get a quote for your project and unlock unbeatable solutions tailored just for you

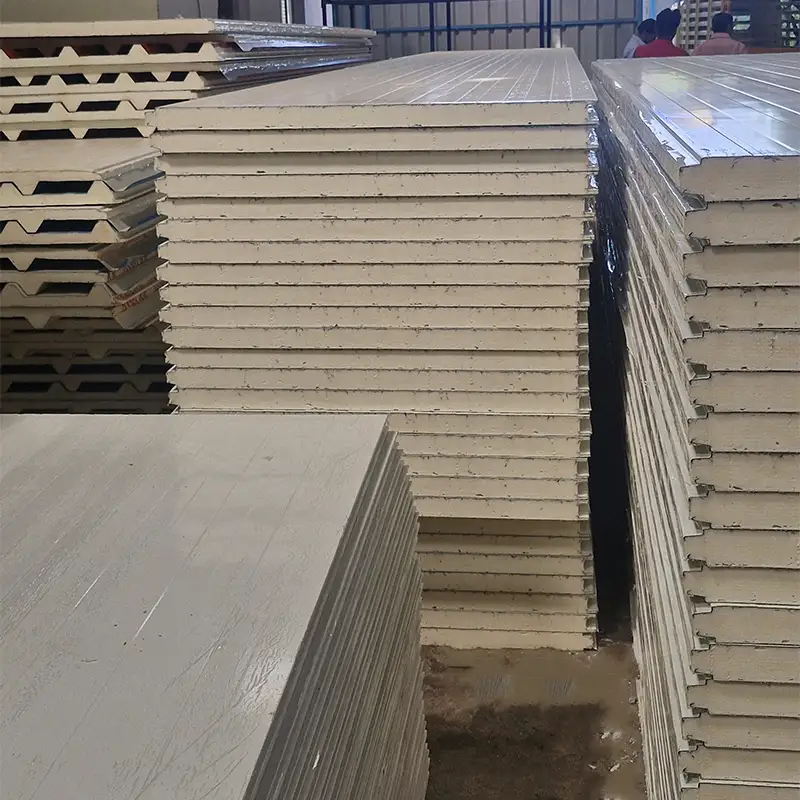

Puf Wall Panels
Cost-Effective
40% to 50% cheaper than conventional walls/partitions.
Easy Installation
Lightweight design for effortless setup.
Versatile Design
Options for various thicknesses, colors, and textures.
Get a quote for your project and unlock unbeatable solutions tailored just for you.
